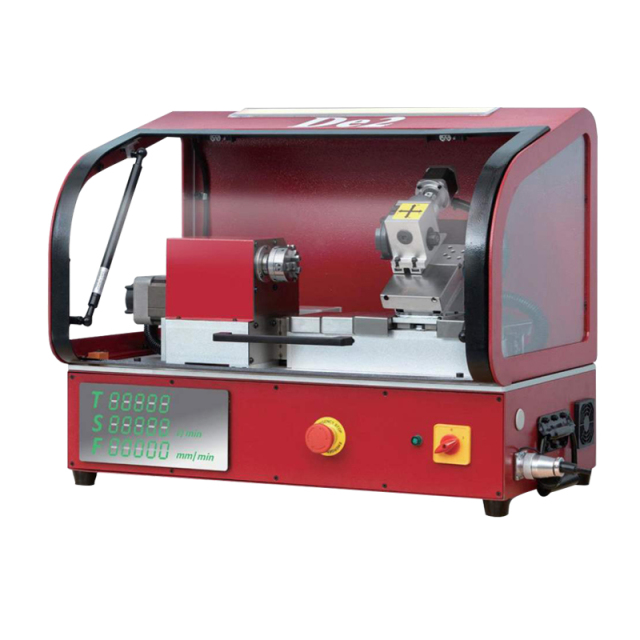

Three modes are available for selection, De2, De2-Pro, De2-Ultra.
Slant bed with 4 station ATC.
3-jaw chuck and collets included as standard.
Specifications
De2/De2-Ultra
Working area
Turning diameter over bed
120mm
Travel cross slide
60mm
Spindle
Chuck diameter
50mm
Spindle speed
3000mm
Spindle through hole
8mm
Spindle mount
ER11
Spindle motor power
250mm
Feed
X travel
55mm
Z travel
The max. moving speed
2m/min
X motor
0.4Nm
Z motor
0.9Nm
Tool post
Tool position
4mm
Tool dimension 4 external
6x6mm
Accuracy
Positioning accuracy
0.02mm
Repeatability accuracy
0.01mm
Others
Power
1000W
N.W. (De2/De2-Ultra)
50/145kg
Overall dimension (De2/De2-Ultra)
700x450x550/1600x950x1220mm
Packing size (De2/De2-Ultra)
1140x570x710/1760x1000x1350mm
Standard Accessories for De2:
ER11 collet set 4pcs
Turning cutter set 7pcs
Insert set 7pcs
Handwheel
USB disk
Standard Accessories Well-organized：
De2-Ultra:
Physical machine handwheel
Virtual machine handwheel
Vacuum cleaner
