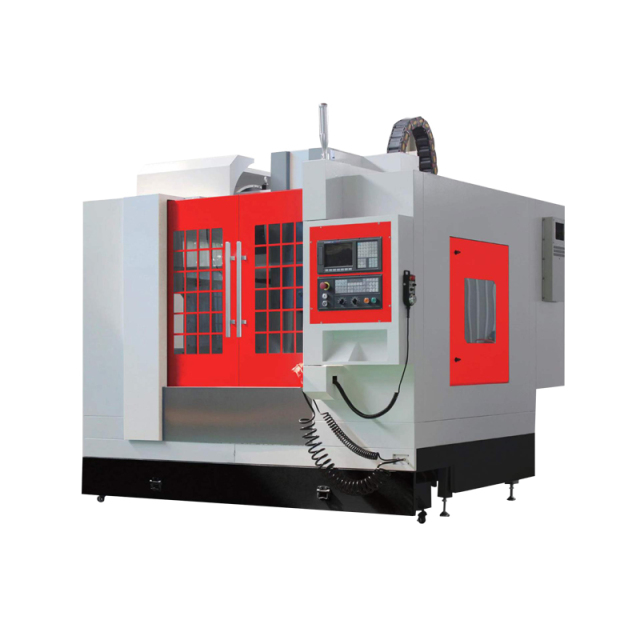

The base, slide, carriage, column, spindle box are made of cast iron, more reliable and durable.
Precision spindle with strong bearing ensures the high speed, high accuracy and strength.
The center of spindle is blowing structure, which ensures clamping accuracy and tool life.
X/Y/Z axes come with precision ball screws, no back clearance, and ensure the positional accuracy synchronous.
Protection devices can keep the clean on X/Y/Z axes guide and ball screws to ensure the reliable operation and long machine life.
Centralized automatic lubricating devices can achieve timing batch type lubrication according to the working condition.
The operation panel is designed based on the ergonomic principles, and can rotate according the operator's position.
|
Specifications |
Fa10 (iKX9) |
Fa12 (iKX11) |
|
|
Table |
Table size |
800x400mm |
1000x500mm |
|
T-slot (No./width/pitch) |
3pcs/16/80mm |
5pcs/18/100mm |
|
|
Max. load |
400kg |
500kg |
|
|
Travel |
X travel |
650mm |
850mm |
|
Y travel |
420mm |
500mm |
|
|
Z travel |
500mm |
500mm |
|
|
Spindle nose to table |
100-600mm |
120-620mm |
|
|
Spindle |
Spindle taper |
BT40/ER25 |
BT40/ER25 |
|
Spindle motor |
5500W |
7500W |
|
|
Spindle speed |
8000rpm |
8000rpm |
|
|
Feed servo |
Rapid feed |
24m/min |
24m/min |
|
Power of motor X/Y axis |
1500W |
2200W |
|
|
Power of motor Z axis |
2000W |
2200W |
|
|
Tool changer |
Tool number |
16 |
24 |
|
Max. tool diameter |
80/120mm |
80/120mm |
|
|
Max. tool length |
250mm |
250 |
|
|
Max. tool weight |
8kg |
8kg |
|
|
Time of tool change |
2.3/8s |
2.5/8s |
|
|
Accuracy |
Positioning accuracy |
0.006mm |
0.006mm |
|
Repeatability accuracy |
0.008mm |
0.005mm |
|
|
Others |
Pneumatic supply |
0.6MPa |
0.6MPa |
|
Power |
380V |
380V |
|
|
N.W. |
3000kg |
4500kg |
|
|
Overall dimension |
2300x1900x2200mm |
2420x2250x2350mm |
|
|
Packaging size |
2500x2100x2400mm |
2600x2300x2550mm |
|
