12 station ATC.
Transparent enclosure available.
Pre-installed 4th axis fast interface.
Pre-installed handwheel controller fast interface.
Specifications

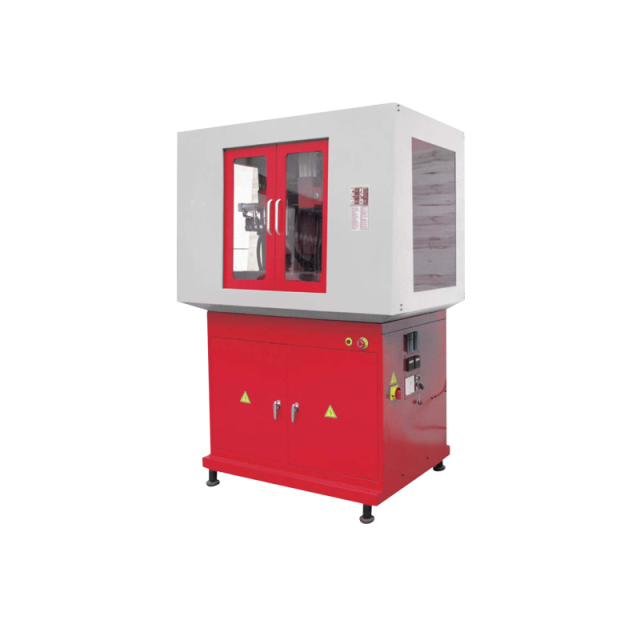

Fa6 (iKX3)
Table
Table size
550x160mm
T-slot (No./width/pitch)
3pcs/12/43mm
Max. load
30kg
Travel
X travel
270mm
Y travel
152mm
Z travel
Spindle nose to table
80-350mm
Spindle
Spindle taper
ISO20/ER16
Spindle motor
1000W
Spindle speed
100-5000r/min
Feed
Rapid feed
2000mm/min
Power of motor X/Y axis
400W
Power of motor Z axis
750W
Tool changer
Tool number
12
Max. tool diameter
10mm
Max. tool length
110mm
Max. tool weight
0.5kg
Time of tool change
8s
Accuracy
Positioning accuracy
±0.015mm
Repeatability accuracy
±0.010mm
Others
Pneumatic supply
0.6MPa
Power
230/380V
N.W./G.W.
390/450kg
Overall dimension
1280x895x1845mm
Packing size
1420x1060x2035mm
Standard Accessories
Optional Accessories
Handwheel
ER16 collet set 8pcs (3,4,5,6,7,8,9,10mm)
ISO20 tool holder 2pcs
ISO20/ER16 tool holder 12pcs
ER16 collet 4pcs
HSS end mill 2 flutes (3,4,5,6,8,10mm)
End mill 4pcs
Clamping kit
High precision vice
Computer stand
Engraving tool set
Mill chuck set chuck (4,6,8,10,12,14,16mm)
