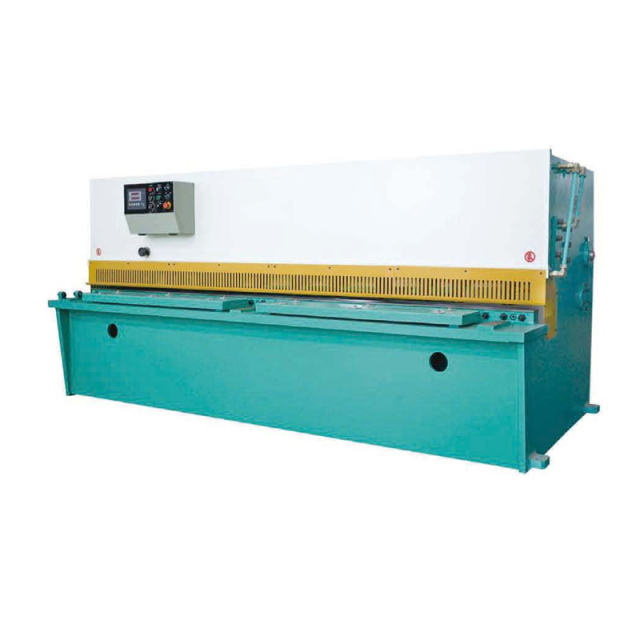

整体焊接结构，经退火处理。
上刀架在液压缸驱动下摆动向下，在氮气缸驱动下返回。
手动调节刀片间隙。
后挡料在电机控制下实现前后运动，采用E10数显装置指示后挡料的数值。
主要电气、液压元件均采用国际优质品牌。
|
模型 |
切割厚度 |
宽度 |
柱距 |
描边 |
后挡料范围 |
切割角度 |
桌子高度 |
喉深 |
主电源 |
方面 |
机器重量 |
|
单元 |
毫米 |
毫米 |
毫米 |
次/分钟 |
毫米 |
° |
毫米 |
毫米 |
千瓦 |
毫米 |
公斤 |
|
QC12Y-4x2000 |
4 |
2000 |
2150 |
20 |
20-600 |
1°30' |
740 |
100 |
4 |
2500x1550x1520 |
2900 |
|
QC12Y-4x2500 |
4 |
2500 |
2700 |
18 |
20-600 |
1°30' |
740 |
100 |
4 |
3100x1550x1520 |
3400 |
|
QC12Y-4x3200 |
4 |
3200 |
3410 |
14 |
20-600 |
1°30' |
800 |
150 |
5.5 |
3750x1680x1650 |
5000 |
|
QC12Y-4x4000 |
4 |
4000 |
4220 |
10 |
20-600 |
1°30' |
800 |
150 |
5.5 |
4650x1900x1720 |
6800 |
|
QC12Y-4x4500 |
4 |
4500 |
4720 |
8 |
20-600 |
1°30' |
800 |
150 |
5.5 |
5150x1900x1720 |
8000 |
|
QC12Y-6x1500 |
6 |
1500 |
1660 |
20 |
20-600 |
1°30' |
780 |
150 |
7.5 |
2000x1760x1600 |
3000 |
|
QC12Y-6x2500 |
6 |
2500 |
2720 |
17 |
20-600 |
1°30' |
780 |
150 |
7.5 |
3100x1620x1600 |
4800 |
|
QC12Y-6x3200 |
6 |
3200 |
3420 |
14 |
20-600 |
1°30' |
800 |
150 |
7.5 |
3800x1700x1650 |
6400 |
|
QC12Y-6x4000 |
6 |
4000 |
4220 |
10 |
20-600 |
1°30' |
800 |
150 |
7.5 |
4650x1850x1750 |
8000 |
|
QC12Y-6x5000 |
6 |
5000 |
5260 |
7 |
20-600 |
1°30' |
850 |
150 |
7.5 |
5600x2200x1950 |
14000 |
|
QC12Y-6x6000 |
6 |
6000 |
6230 |
6 |
20-600 |
1°30' |
850 |
150 |
11 |
6650x2200x1950 |
17000 |
|
QC12Y-8x2500 |
8 |
2500 |
2720 |
14 |
20-600 |
1°30' |
800 |
150 |
11 |
3100x1750x1700 |
6800 |
|
QC12Y-8x3200 |
8 |
3200 |
3440 |
10 |
20-600 |
1°30' |
800 |
150 |
11 |
3800x1850x1750 |
7500 |
|
QC12Y-8x4000 |
8 |
4000 |
4230 |
8 |
20-600 |
1°30' |
800 |
150 |
11 |
4600x1900x1800 |
8500 |
|
QC12Y-8x6000 |
8 |
6000 |
6230 |
6 |
20-600 |
1°30' |
850 |
150 |
11 |
6700x2350x2050 |
19000 |
|
QC12Y-10x2500 |
10 |
2500 |
2720 |
10 |
20-600 |
1°30' |
800 |
150 |
11 |
3100x1750x1700 |
7500 |
|
QC12Y-10x3200 |
10 |
3200 |
3440 |
10 |
20-600 |
1°30' |
800 |
150 |
11 |
3800x1850x1750 |
8000 |
|
QC12Y-10x4000 |
10 |
4000 |
4230 |
12 |
20-600 |
1°30' |
800 |
150 |
11 |
4600x1900x1800 |
9000 |
|
QC12Y-12x1500 |
12 |
1500 |
1680 |
14 |
20-600 |
2°9' |
800 |
150 |
15 |
2500x1800x1750 |
5000 |
|
QC12Y-12x2500 |
12 |
2500 |
2760 |
10 |
20-800 |
1°50' |
810 |
150 |
15 |
3150x1950x1850 |
8500 |
|
QC12Y-12x3200 |
12 |
3200 |
3465 |
10 |
20-800 |
1°45' |
810 |
150 |
22 |
3850x2150x2000 |
11000 |
|
QC12Y-12x4000 |
12 |
4000 |
4365 |
7 |
20-800 |
2° |
810 |
150 |
22 |
4650x2270x2100 |
13000 |
|
QC12Y-12x6000 |
12 |
6000 |
6245 |
5 |
20-800 |
2° |
950 |
150 |
22 |
6900x2500x2450 |
29000 |
|
QC12Y-16x1500 |
16 |
1500 |
1680 |
10 |
20-600 |
2°30' |
800 |
150 |
15 |
2600x1950x1800 |
6000 |
|
QC12Y-16x2500 |
16 |
2500 |
2765 |
8 |
20-800 |
2°9' |
850 |
150 |
22 |
3200x2150x2050 |
10500 |
|
QC12Y-16x3200 |
16 |
3200 |
3455 |
7 |
20-800 |
2°9' |
860 |
150 |
22 |
4000x2250x2150 |
12500 |
|
QC12Y-16x4000 |
16 |
4000 |
4285 |
6 |
20-800 |
2°9' |
900 |
150 |
22 |
4800x2450x2320 |
15500 |
|
QC12Y-20x2500 |
20 |
2500 |
2815 |
6 |
20-800 |
2°30' |
860 |
150 |
三十 |
3400x2300x2200 |
13200 |
|
QC12Y-20x3200 |
20 |
3200 |
3487 |
5 |
20-800 |
2°30' |
890 |
150 |
三十 |
4050x2450x2250 |
14800 |
|
QC12Y-20x4000 |
20 |
4000 |
4305 |
5 |
20-800 |
2°20' |
990 |
150 |
三十 |
4900x2300x2450 |
18000 |
|
QC12Y-25x2500 |
二十五 |
2500 |
2805 |
5 |
20-800 |
3°7' |
900 |
150 |
三十七 |
3450x2500x2350 |
16900 |
|
QC12Y-25x3200 |
二十五 |
3200 |
3505 |
5 |
20-800 |
3°7' |
900 |
150 |
三十七 |
4160x2600x2500 |
19000 |
|
QC12Y-30x2500 |
三十 |
2500 |
2825 |
4 |
20-1000 |
3°12' |
900 |
200 |
四十五 |
3500x2650x2500 |
19700 |
|
QC12Y-30x3200 |
三十 |
3200 |
3450 |
4 |
20-1000 |
3°12' |
1000 |
200 |
四十五 |
4350x3050x2800 |
28000 |
