Specifications |

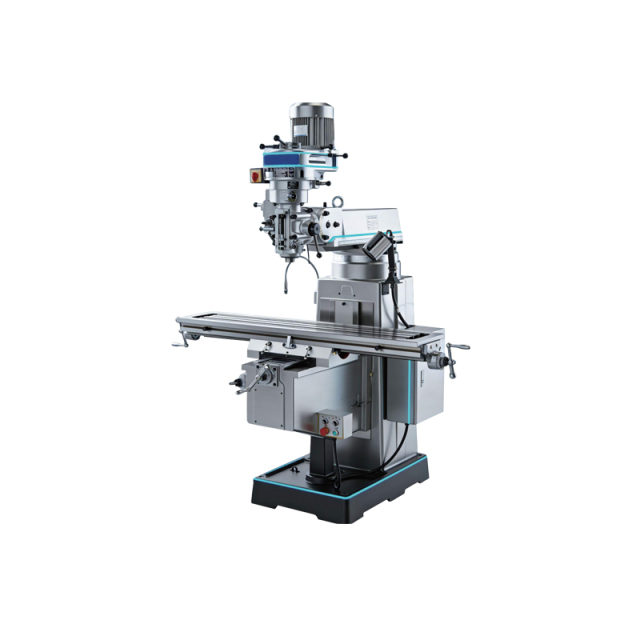

X6332 |
|
|
Table size |
320x1370mm (12.5"x54") 320x1500mm (12.5"x58") |
|
|
Table travel |
Longitudinal |
920/1000mm |
|
Cross |
360/400mm |
|
|
Vertical |
350mm |
|
|
T-slot (No./width) |
3pcs/16mm |
|
|
Ram travel |
470mm |
|
|
Distance from spindle nose to table surface |
0-400mm |
|
|
Spindle taper |
Standard R8 (ISO30/ISO40 optional) |
|
|
Spindle travel |
127mm |
|
|
Spindle speed |
50Hz |
(16 steps) 65-4500rpm |
|
60Hz |
(16 steps) 80-5440rpm |
|
|
Optional |
Variable 60-4200rpm |
|
|
Auto quill feed |
0.04/0.08/0.15mm/rev (0.0015"/0.003"/0.006"/rev) |
|
|
Spindle motor |
2.25kW (3HP) |
|
|
Head swivel right to left |
±90° |
|
|
Head tilting front to back |
±45° |
|
|
Packing size |
1 unit per case |
1550x1550x2080mm |
|
2 units per case |
1650x1880x2170mm |
|
|
Net weight |
1440 |
|
