首页 > 所有系列 > 机床 > 车床 > 数控斜床身车床 > X80Y,X80SY,X80SY2 CNC Slant Bed Lathe with Mill

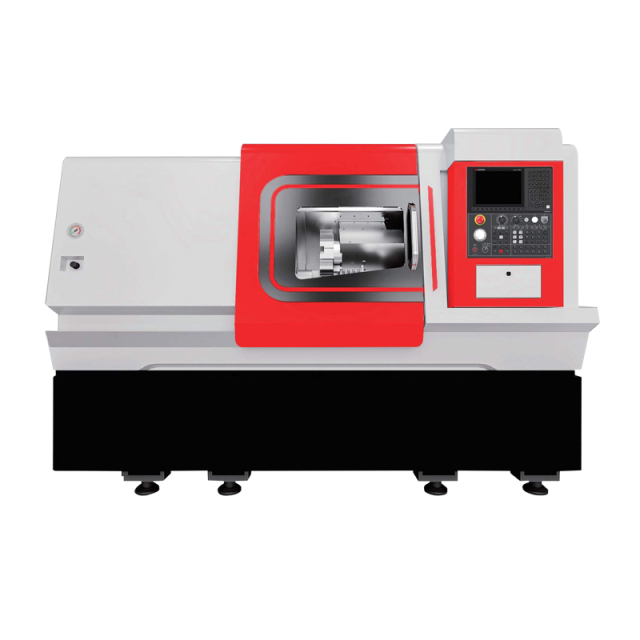

  • X80Y,X80SY,X80SY2 CNC Slant Bed Lathe with Mill,盛茂工业
  • X80Y,X80SY,X80SY2 CNC Slant Bed Lathe with Mill,盛茂工业

X80Y,X80SY,X80SY2 CNC Slant Bed Lathe with Mill

The machine castings are made of HT300. Advanced finite element analysis technology is adopted in the design, with reasonable structure and excellent lay out. The casting is treated by secondary aging to ensure the long-term stability of machining.
The machine is equipped with an auxiliary spindle, which can realize the docking of the two spindles, improve the machining accuracy and efficiency, and achieve a higher degree of automation.
Roller linear guides are used in X and Z1 and Z2 directions. The two rails have large span, good stability, strong rigidity and good machining accuracy.
Both spindles are precision motorized spindles with high precision, high rigidity, high rotation speed and durability.
The machine is equipped with a 12-station power tool turret with Y axis. Bidirectional positioning, short tool change time and high positioning accuracy. The power tool turret moves up and down on the vertical column carriage at 90°. Different power tool holders can be selected to drill, mill and tap workpieces, and complex parts can be machined by turning and milling.
3-axis screw is precision imported ball screw, with pre-stretching process, small deformation and high transmission accuracy.
The screw support adopts SKF bearing, with high-precision lock nut, to further improve the machining accuracy of the machine.
The machine is designed in two ways: side chip removal and back chip removal, which can be selected by users.
请求报价
添加到购物车 浏览列表
  • X80Y,X80SY,X80SY2 CNC Slant Bed Lathe with Mill,盛茂工业
规格

Specifications

X80Y

X80SY/X80SY2

Swing over bed

680mm

600mm

Swing over slide

300mm

300mm

Max. turning diameter

410mm

300mm

Max. turning length

550mm

450mm

Spindle through hole

66mm

66mm

Spindle motor power

2275W

1190W

Spindle speed

4300r/min

4000r/min

Spindle mount

A2-8

A2-6

X travel

240mm

210mm

Z travel

580mm

450mm

A travel

N/A

450mm

Y turret travel

±45mm

±45mm

The max. moving speed

20m/min

20m/min

Tool post

12 station Y-axis power tool turret
 (2 turrets for X80SY2)

Blade size

25x25mm

25x25mm

Boring tool diameter

40mm

40mm

Tailstock travel

100-550mm

N/A

Overall dimension

2900x1950x2200mm

2900x1930x2000mm

N.W.

4800kg

7000kg
