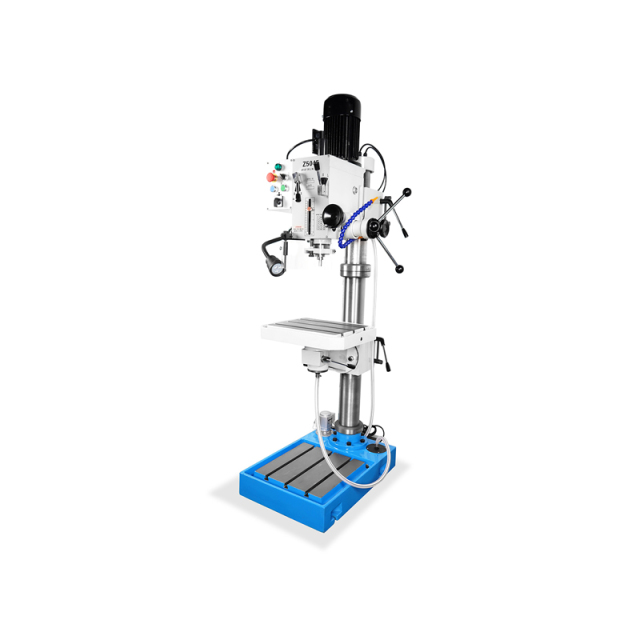

Spindle head rotates 360° horizontally.
Headstock and worktable can move vertically.
Super high column.
Precision micro feed.
Spindle lockable at any vertical position.
Unique automatic tool release mechanism, easy to operate.
Gear driven, lower noise.
|
Specifications |
Z5032 |
Z5040 |
Z5045 |
|
Max. drilling capacity |
32mm |
40mm |
45mm |
|
Spindle taper |
MT3 or R8 |
MT4 |
MT4 |
|
Spindle travel |
130mm |
130mm |
130mm |
|
Spindle speed step |
6 |
6 |
6 |
|
Spindle speed 50Hz |
80-1250rpm |
80-1250rpm |
80-1250rpm |
|
Spindle speed 60Hz |
95-1500rpm |
95-1500rpm |
95-1500rpm |
|
Min. distance from spindle axis to column surface |
283mm |
283mm |
283mm |
|
Max. distance from spindle nose to table surface |
725mm |
725mm |
725mm |
|
Max. distance from spindle nose to base surface |
1125mm |
1125mm |
1125mm |
|
Headstock travel |
250mm |
250mm |
250mm |
|
Swivel angle of headstock (horizontal) |
360° |
360° |
360° |
|
Table travel |
600mm |
600mm |
600mm |
|
Table size |
380x300mm |
380x300mm |
380x300mm |
|
Swivel angle of table (horizontal) |
360° |
360° |
360° |
|
Table tilt (vertical) |
±45° |
±45° |
±45° |
|
Base size |
417x416mm |
417x416mm |
417x416mm |
|
Main motor |
0.75kW (1HP) |
1.1kW (1.5HP) |
1.5kW (2HP) |
|
Main motor speed |
1400rpm |
1400rpm |
1400rpm |
|
N.W./G.W. |
430/480kg |
432/482kg |
435/485kg |
|
Packing size |
1850x750x1000mm |
1850x750x1000mm |
1850x750x1000mm |
